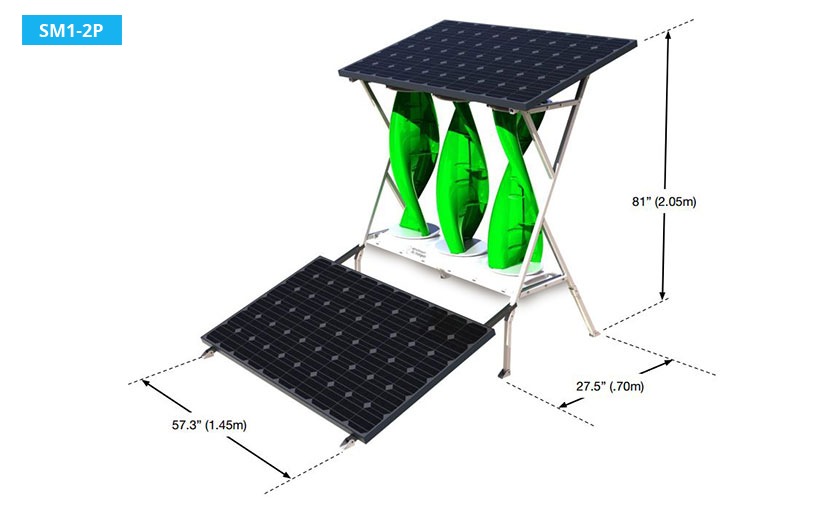

SM1-2P
SolarMill®: SM1-2P
Performance Advantages
- Roof-Top Wind & Solar Hybrid Energy System.
- Stable 24-hour power production capability.
- Maximizes energy density.
- Scalable power generation.
- Mechanical braking at high-speed winds beyond 18.5 m/s.
- Appropriate for on or off grid applications.
- Offsets peak energy pricing for grid-tied systems.
- Online tool for power generation monitoring.
- Power generation starting at 2 m/s wind speed.
Features
- Low profile Vertical Axis Savonius Wind Turbines. Cut-in wind speed – 2 m/s & Cut-out wind speed – 18.5 m/s.
- Scalable to user defined KW need – interconnection cables provided.
- Integrated Maximum Power Point Tracking
- (MPPT) with “smart” bus logic control technology – 48vDC.
- Easy assembly and maintenance.
- Minimal running maintenance required.
- Custom colors available.
- Temperature sensing electronics for thermal protection.
- Able to withstand temperature ranges from -30°C to 50°C.
Installation Benefits
- Easy to mount on any structure.
- Flexible Installation - ballasted or roof penetration.
- Visually engaging design.
- Environment-friendly, silent operation.
| Entire System | |
|---|---|
| SolarMill Dimensions | 1460 mm (L) x 840 mm (W) x 1900 mm (H) |
| Weight | 225 lbs | 102.06 kgs |
| Cover Material | UV Resistant HDPE |
| Frame | Galvanized G-90 Steel and Aluminum |
| Electronics Enclosure Rating | IP53 |
| Electrical Connection | On-Board Battery Charge Controller Grid-Tied Inverter (Optional) |
| Generator | Permanent Magnet Axial Gap |
| Design Life | 25 Years |
| Wind Component | |
|---|---|
| Turbine Related Power Output | 143 W @ 11 m/s |
| Wind Component Maximum Power Output | 500 W @ 17 m/s |
| Maximum Voltage | 57 DC |
| Maximum Current | 30 Amps |
| Rotor Diameter | 13 in | 0.33 m |
| Cut-In Wind Speed | 4.5 mph | 2 m/s |
| Cut-Out Wind Speed | 38.03 mph | 18.5 m/s |
| Swept Area | 1,519 in2 | 0.980 m2 |
| Turbine Material | Galvanized G-90 Steel |
| Solar Component | |
|---|---|
| Maximum Power (Pmpp) | 490 W |
| Voltage at Max Power (Vmpp) | 30.1 V |
| Current at Max Power (lmpp) | 8.2 A |
| Open Circuit Voltage (Voc) | 37.7 V |
| Short Circuit Voltage (Voc) | 8.7 A |
| * Reduction in module efficiency with decrease in irradiation level from 1000 W/ m2 to 200 W/m2 (at 25 degrees C) | |
| Maximum System Voltage | 1000 V |
| Solar Cells | Monocrystalline |
| No. of Cells | 120 |
| Entire System | SM1-1P | SM1-2P | SM2-3P | SM2-6P |
|---|---|---|---|---|
| SolarMill Dimensions | 1460 mm (L) x 850 mm (W) x 1900 mm (H) | 1460 mm (X) x 1840 mm (Y) x 1900 mm (Z) | 2950 mm (L) x 692 mm (W) x 1732 mm (H) | 3100mm(X) x 2555mm (Y) x 1900mm(Z) |
| Weight | 185 lbs | 83.91 kgs | 225 lbs | 102.06 kgs | 410 lbs | 185.97 kgs | 555 lbs | 251.74 kgs |
| Cover Material | UV Resistant HDPE | UV Resistant HDPE | UV Resistant HDPE | UV Resistant HDPE |
| Frame | Galvanized G-90 Steel and Aluminum | Galvanized G-90 Steel and Aluminum | Galvanized G-90 Steel and Aluminum | Galvanized G-90 Steel and Aluminum |
| Electronics Enclosure Rating | IP53 | IP53 | IP53 | IP53 |
| Electrical Connection | On-Board Battery Charge Controller Grid-Tied Inverter (Optional) | On-Board Battery Charge Controller Grid-Tied Inverter (Optional) | On-Board Battery Charge Controller Grid-Tied Inverter (Optional) | On-Board Battery Charge Controller Grid-Tied Inverter (Optional) |
| Generator | Permanent Magnet Axial Gap | Permanent Magnet Axial Gap | Permanent Magnet Axial Gap | Permanent Magnet Axial Gap |
| Design Life | 20 Years | 20 Years | 20 Years | 20 Years |
| Wind Component | SM1-1P | SM1-2P | SM2-3P | SM2-6P |
|---|---|---|---|---|
| Turbine Rated Power Output | 143 W @ 11 m/s | 143 W @ 11 m/s | 286 W @ 11 m/s | 286 W @ 11 m/s |
| Wind Component Maximum Power Output | 500 W @ 17 m/s | 500 W @ 17 m/s | 1000 W @ 17 m/s | 1000 W @ 17 m/s |
| Maximum Voltage | 57 DC | 57 DC | 57 DC | 57 DC |
| Maximum Current | 30 Amps | 30 Amps | 30 Amps | 30 Amps |
| Rotor Diameter | 13 in | 0.33 m | 13 in | 0.33 m | 13 in | 0.33 m | 13 in | 0.33 m |
| Cut-In Wind Speed | 4.5 mph | 2 m/s | 4.5 mph | 2 m/s | 4.5 mph | 2 m/s | 4.5 mph | 2 m/s |
| Cut-Out Wind Speed | 38 mph | 18.5 m/s | 38 mph | 18.5 m/s | 38 mph | 18.5 m/s | 38 mph | 18.5 m/s |
| Swept Area | 1,519 in2 | 0.980m2 | 1,519 in2 | 0.980m2 | 1,519 in2 | 0.980m2 | 1,519 in2 | 0.980m2 |
| Turbine Material | Galvanized G90 Steel | Galvanized G90 Steel | Galvanized G90 Steel | Galvanized G90 Steel |
| Solar Component | SM1-1P | SM1-2P | SM2-3P | SM2-6P |
|---|---|---|---|---|
| Maximum Power (Pmpp) | 245 W | 490 W | 735 W | 1470 W |
| Voltage at Max Power (Vmpp) | 30.1 V | 30.1 V | 30.1 V | 30.1 V |
| Current at Max Power (lmpp) | 8.2 A | 8.2 A | 8.2 A | 8.2 A |
| Open Circuit Voltage (Voc) | 37.7 V | 37.7 V | 37.7 V | 37.7 V |
| Short Circuit Voltage (Isc) | 8.7 A | 8.7 A | 8.7 A | 8.7 A |
| * Reduction in module efficiency with decrease in irradiation level from 1000 W/ m2 to 200 W/m2 (at 25 degrees C) | ||||
| Maximum System Voltage | 1000 V | 1000 V | 1000 V | 1000 V |
| Solar Cells | Monocrystalline | Monocrystalline | Monocrystalline | Monocrystalline |
| No. of Cells | 60 | 120 | 180 | 360 |
