SolarMill®: SM1-1P

Performance Advantages

  • Roof-Top Wind & Solar Hybrid Energy System.
  • Stable 24-hour power production capability.
  • Maximizes energy density.
  • Scalable power generation.
  • Mechanical braking at high-speed winds beyond 18.5 m/s.
  • Appropriate for on or off grid applications.
  • Offsets peak energy pricing for grid-tied systems.
  • Online tool for power generation monitoring.
  • Power generation starting at 2 m/s wind speed.

Features

  • Low profile Vertical Axis Savonius Wind Turbines. Cut-in wind speed – 2 m/s & Cut-out wind speed – 18.5 m/s.
  • Scalable to user defined KW need – interconnection cables provided.
  • Integrated Maximum Power Point Tracking
  • (MPPT) with “smart” bus logic control technology – 48vDC.
  • Easy assembly and maintenance.
  • Minimal running maintenance required.
  • Custom colors available.
  • Temperature sensing electronics for thermal protection.
  • Able to withstand temperature ranges from -30°C to 50°C.

Installation Benefits

  • Easy to mount on any structure.
  • Flexible Installation - ballasted or roof penetration.
  • Visually engaging design.
  • Environment-friendly, silent operation.
Entire System

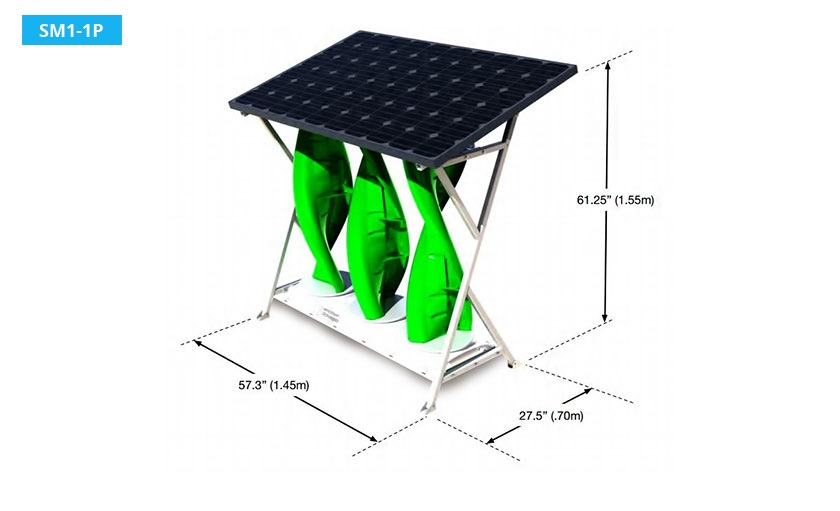

SolarMill Dimensions 1460 mm (L) x 850 mm (W) x 1900 mm (H)
Weight 185 lbs | 83.91 kgs
Cover Material UV Resistant HDPE
Frame Galvanized G-90 Steel and Aluminum
Electronics Enclosure Rating IP53
Electrical Connection On-Board Battery Charge Controller Grid-Tied Inverter (Optional)
Generator Permanent Magnet Axial Gap
Design Life 25 Years
Wind Component
Turbine Related Power Output 143 W @ 11 m/s
Wind Component Maximum Power Output 500 W @ 17 m/s
Maximum Voltage 57 DC
Maximum Current 30 Amps
Rotor Diameter 13 in | 0.33 m
Cut-In Wind Speed 4.5 mph | 2 m/s
Cut-Out Wind Speed 38.03 mph | 18.5 m/s
Swept Area 1,519 in2 | 0.980 m2
Turbine Material Galvanized G-90 Steel
Solar Component
Maximum Power (Pmpp) 245 W
Voltage at Max Power (Vmpp) 30.1 V
Current at Max Power (lmpp) 8.2 A
Open Circuit Voltage (Voc) 37.7 V
Short Circuit Voltage (Voc) 8.7 A
* Reduction in module efficiency with decrease in irradiation level from 1000 W/ m2 to 200 W/m2 (at 25 degrees C)
Maximum System Voltage 1000 V
Solar Cells Monocrystalline
No. of Cells 60
Entire System SM1-1P SM1-2P SM2-3P SM2-6P
SolarMill Dimensions 1460 mm (L) x 850 mm (W) x 1900 mm (H) 1460 mm (X) x 1840 mm (Y) x 1900 mm (Z) 2950 mm (L) x 692 mm (W) x 1732 mm (H) 3100mm(X) x 2555mm (Y) x 1900mm(Z)
Weight 185 lbs | 83.91 kgs 225 lbs | 102.06 kgs 410 lbs | 185.97 kgs 555 lbs | 251.74 kgs
Cover Material UV Resistant HDPE UV Resistant HDPE UV Resistant HDPE UV Resistant HDPE
Frame Galvanized G-90 Steel and Aluminum Galvanized G-90 Steel and Aluminum Galvanized G-90 Steel and Aluminum Galvanized G-90 Steel and Aluminum
Electronics Enclosure Rating IP53 IP53 IP53 IP53
Electrical Connection On-Board Battery Charge Controller Grid-Tied Inverter (Optional) On-Board Battery Charge Controller Grid-Tied Inverter (Optional) On-Board Battery Charge Controller Grid-Tied Inverter (Optional) On-Board Battery Charge Controller Grid-Tied Inverter (Optional)
Generator Permanent Magnet Axial Gap Permanent Magnet Axial Gap Permanent Magnet Axial Gap Permanent Magnet Axial Gap
Design Life 20 Years 20 Years 20 Years 20 Years
Wind Component SM1-1P SM1-2P SM2-3P SM2-6P
Turbine Rated Power Output 143 W @ 11 m/s 143 W @ 11 m/s 286 W @ 11 m/s 286 W @ 11 m/s
Wind Component Maximum Power Output 500 W @ 17 m/s 500 W @ 17 m/s 1000 W @ 17 m/s 1000 W @ 17 m/s
Maximum Voltage 57 DC 57 DC 57 DC 57 DC
Maximum Current 30 Amps 30 Amps 30 Amps 30 Amps
Rotor Diameter 13 in | 0.33 m 13 in | 0.33 m 13 in | 0.33 m 13 in | 0.33 m
Cut-In Wind Speed 4.5 mph | 2 m/s 4.5 mph | 2 m/s 4.5 mph | 2 m/s 4.5 mph | 2 m/s
Cut-Out Wind Speed 38 mph | 18.5 m/s 38 mph | 18.5 m/s 38 mph | 18.5 m/s 38 mph | 18.5 m/s
Swept Area 1,519 in2 | 0.980m2 1,519 in2 | 0.980m2 1,519 in2 | 0.980m2 1,519 in2 | 0.980m2
Turbine Material Galvanized G90 Steel Galvanized G90 Steel Galvanized G90 Steel Galvanized G90 Steel
Solar Component SM1-1P SM1-2P SM2-3P SM2-6P
Maximum Power (Pmpp) 245 W 490 W 735 W 1470 W
Voltage at Max Power (Vmpp) 30.1 V 30.1 V 30.1 V 30.1 V
Current at Max Power (lmpp) 8.2 A 8.2 A 8.2 A 8.2 A
Open Circuit Voltage (Voc) 37.7 V 37.7 V 37.7 V 37.7 V
Short Circuit Voltage (Isc) 8.7 A 8.7 A 8.7 A 8.7 A
* Reduction in module efficiency with decrease in irradiation level from 1000 W/ m2 to 200 W/m2 (at 25 degrees C)
Maximum System Voltage 1000 V 1000 V 1000 V 1000 V
Solar Cells Monocrystalline Monocrystalline Monocrystalline Monocrystalline
No. of Cells 60 120 180 360
