Now available in the U.S.

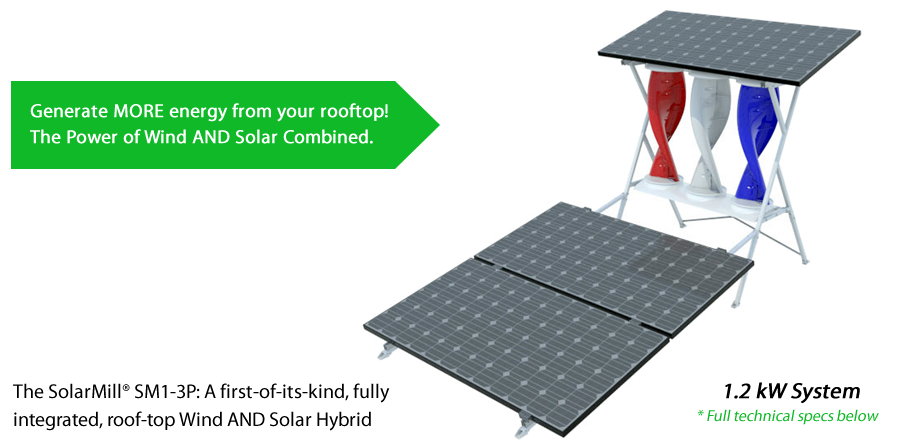

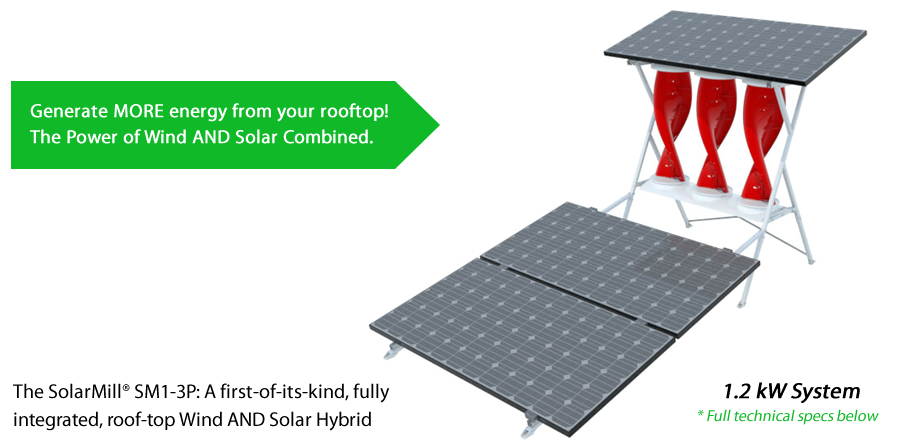

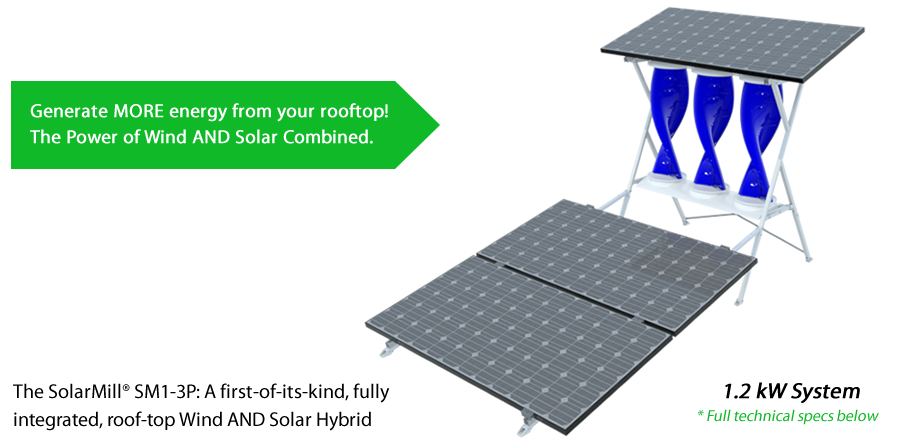

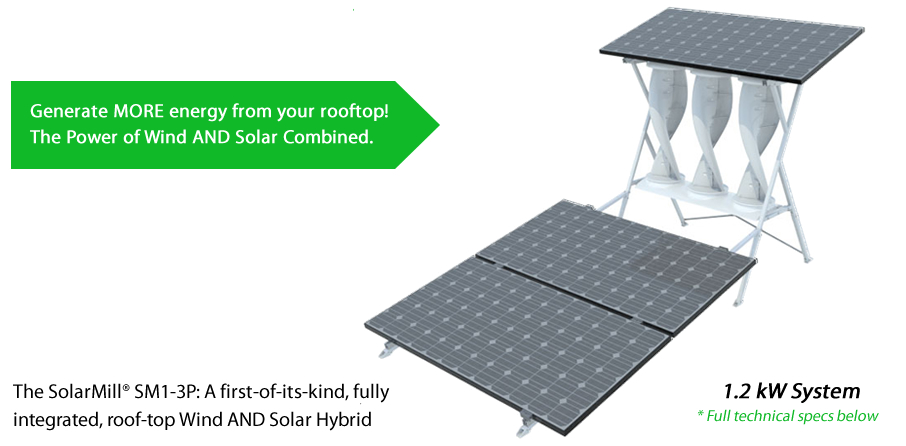

SolarMill®: SM1-3P

Why SolarMill® versus Solar Only?

The SolarMill generates

  • Daytime energy from the sun and wind
  • Night time energy from the wind
  • Higher energy production on cloudy days
  • Better daytime energy peaks
  • More Total Energy!

The SolarMill 1-3P includes:

  • 3 Wind turbines (One Mill)
  • 3 High Efficiency Solar Panels (255w/305w)
  • One Grid Tied Micro/Mini Inverter
Mounting is not included. Your licensed installer will provide mounting system consistent with national and your local codes.

SolarMill®

Performance Advantages

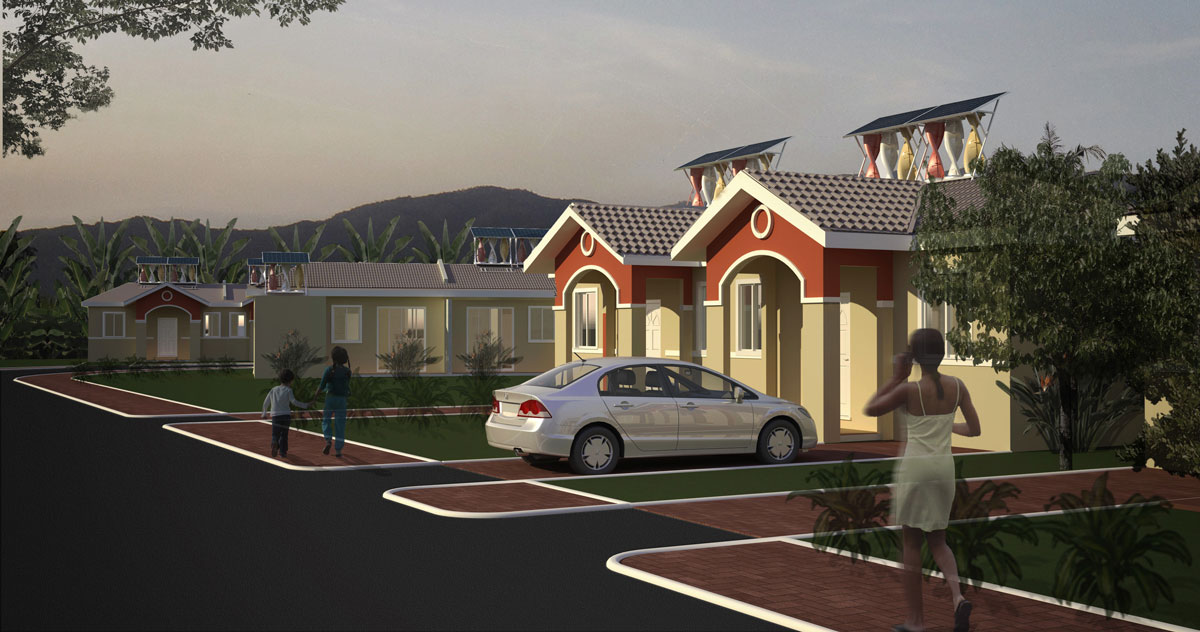

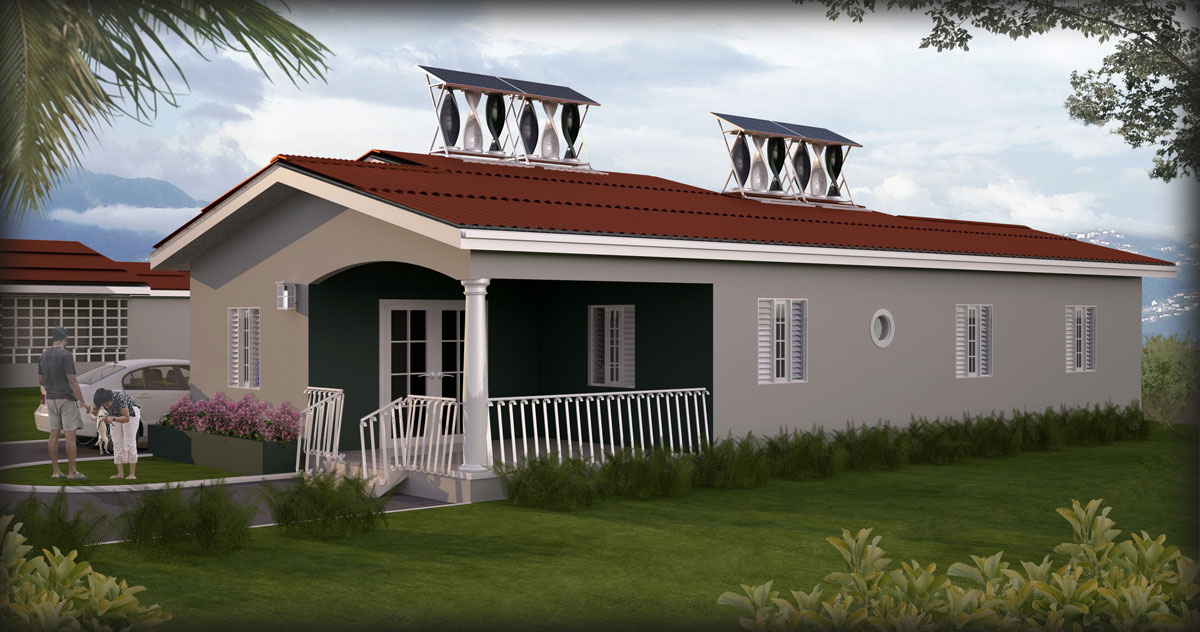

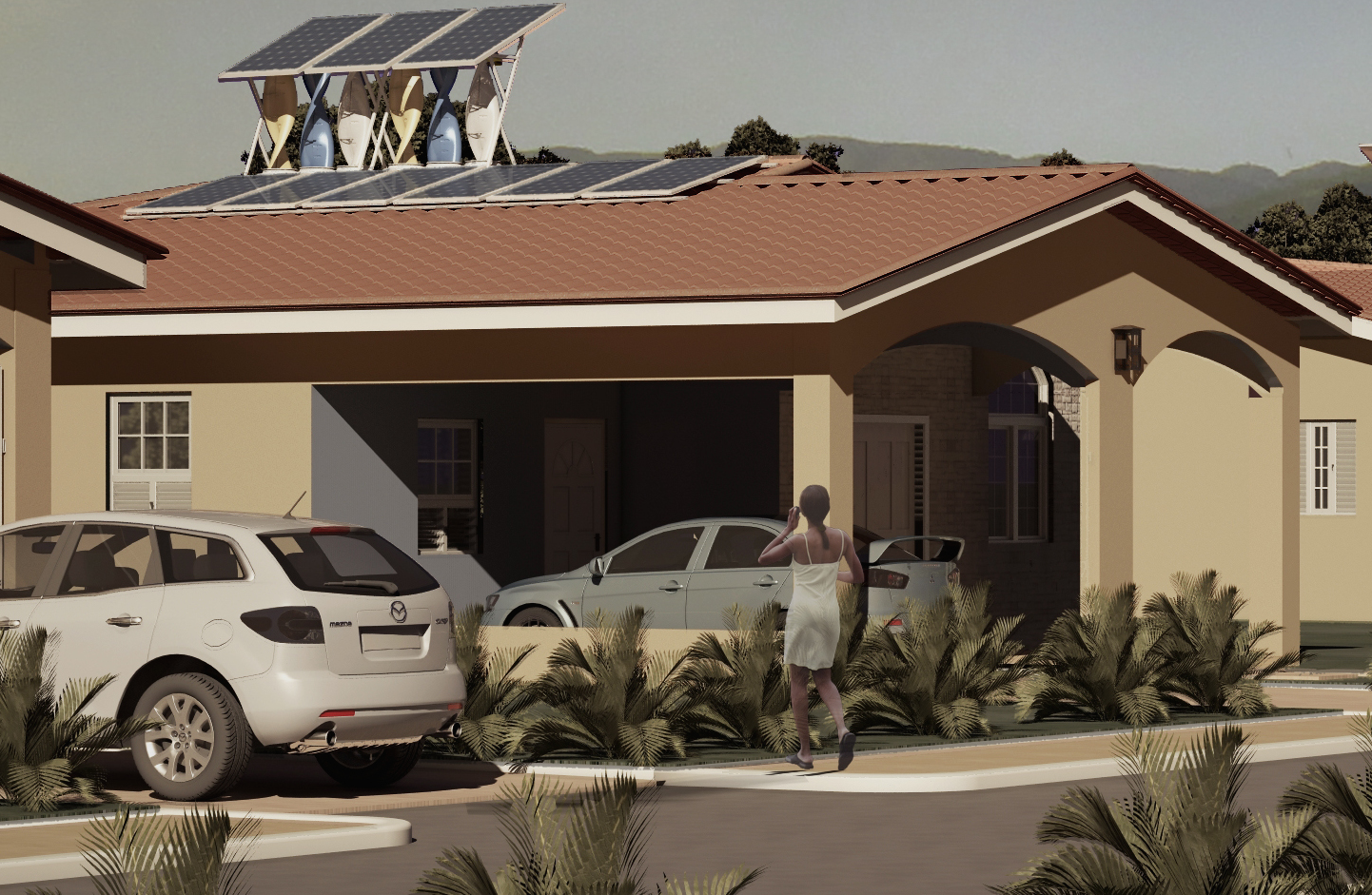

  • Roof-top wind & solar hybrid energy system.
  • 24-hour power production capability.
  • Very high renewable energy density per square foot.
  • Scalable power generation with hybrid or solar.
  • Power generation starting at 2m/s (4.5mph) wind speed.
  • Mechanical braking at high-speed winds beyond 18.5m/s (41mph).
  • Offsets peak energy pricing.
  • Easily integrates with backup battery storage systems.
  • Optional online energy monitoring for inverter, panels, and wind systems.
  • No complicated masts, guy wires, or towers

Features

  • Three Low profile Vertical Axis Wind Turbines (VAWT).
  • Silent operation & environmentally friendly.
  • Integrated Maximum Power Point Tracking (MPPT).
  • Minimal running maintenance required.
  • Temperature sensing electronics for thermal protection.
  • Withstand temperature ranges from -30°C to 50°C (-22°F to 122°F)

Professional installation required. This is NOT a “do-it-yourself” installation. Warranty is void if unit is not installed by a registered licensed electrical or renewable energy contractor. Technical support will only be provided to the licensed renewable energy or electrical contractor. Please note WindStream does not certify or license any installers. Installers will need to be licensed or certified by the state in which they operate. Please validate building and electrical code requirements with your licensed contractor prior to installation.

SM1-3P SYSTEM
Capacity
DC 1200W
Inverter 1200W (4 inputs, 300W/input)
PV Modules 900W (3 x 300W)
Wind* 300W (1 x 300W)
AC 1150W
Energy Production
Est. Avg. Monthly Energy KWh** Low (3m/s) – 112 to 118
Moderate (5m/s) – 121 to 126
High (>7m/s) – 135+
Scalable Upgrades
Hybrid Unit SM1-3P
PV 4 x 300W kit
Entire System

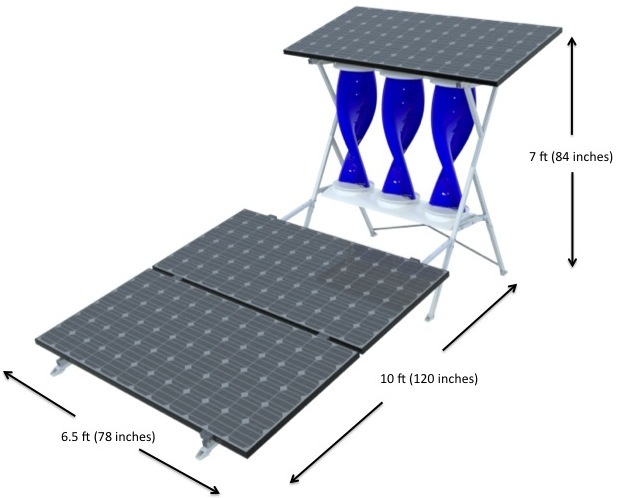

SolarMill Dimensions 10'(L) x 6.5'(W) x 7'(H)
Shipping Dimensions 67"(D) x 30"(W) x 54"(H)
Weight 375 lbs. | 170 kg
Shipping Weight 425 lbs. | 193 kg
Cover Material UV Resistant HDPE
Frame Galvanized G-90 Steel and Aluminum
Electronics Enclosure Rating IP53
Electrical Connection On-Board Battery Charge Controller, Grid-Tied Inverter
Generator Permanent Magnet Axial Gap
Design Life 25 Years

*NB: SM1-3P system capacity is limited by the standard bundled inverter capacity. Maximum rated capacity of each mill is 500W which is realized at >18m/s.
** Estimate only assumes solar irradiance of 5KWh/m2/day, and may vary with siting.

Professional installation required. This is NOT a “do-it-yourself” installation. Warranty is void if unit is not installed by a registered licensed electrical or renewable energy contractor. Technical support will only be provided to the licensed renewable energy or electrical contractor. Please note WindStream does not certify or license any installers. Installers will need to be licensed or certified by the state in which they operate. Please validate building and electrical code requirements with your licensed contractor prior to installation.

1.0 Installation Tools

Q: What tools are recommended for installation?
A: The list of tools is as follows:

  • Ratchet
  • 10 mm wrench
  • 10 mm socket
  • 13 mm wrench
  • 13 mm socket
  • 15 mm wrench
  • 15 mm socket
  • 4 mm allen head bit
  • 5 mm allen head bit
  • Rubber mallet with a soft face
  • Punch to use as a drift pin.
  • Torque wrench and bit holder

1.1 Fastener Torques

  • 8 mm socket head cap screw - 434 in-lbf (49 N-m)
  • 6 mm Socket Head Cap Screw - 176 in-lbf (20 N-m)
  • 6 mm Button Head Screw - 88 in-lbf (10N-m)
  • 5 mm Socket Head Cap Screw - 106 in-lbf (12 N-m)
  • Cover Screw - 53 in-lbf (3 N-m)

1.2 Turbine Blades

Please refer to the SolarMill technical manual before performing any maintenance.

Q: Why do the turbine blades need the tape that prevents them from spinning?
A: This tape is used to ensure that the blades do not spin until they are under electrical load. If the blades were to spin while not under electrical load, damage could occur to the electronic components.

Q: I have a turbine blade that is not spinning freely, what causes these problems?
A: The two most likely issues with the turbine not spinning freely is a failed generator or the cover scratching the receiver plate. If the issue is interference by the cover, there will be an audible scratching noise. If this noise does not exist, it is likely the generator.


1.3 Connection to the Electrical Grid

Q: Why does the circuit breaker keep tripping?
A: This occurs when the breaker is undersized for the power production or that there is a short in the AC circuit.

Professional installation required. This is NOT a “do-it-yourself” installation. Warranty is void if unit is not installed by a registered licensed electrical or renewable energy contractor. Technical support will only be provided to the licensed renewable energy or electrical contractor. Please note WindStream does not certify or license any installers. Installers will need to be licensed or certified by the state in which they operate. Please validate building and electrical code requirements with your licensed contractor prior to installation.

  1. WindStream does not provide installation services.
  2. SolarMill® installation is NOT a “do-it-yourself” project and must be installed by licensed renewable energy or electrical contractor for your state. Please contact a renewable energy contractor in your area.
  3. Assembly instructions, and general installation guidance will be provided to your selected licensed installer.
  4. Mounting systems must be consistent with required national and local building codes. Please verify building code compliance with your state licensed contractor prior to installation.
  5. Installation rates will be negotiated and set by your licensed installer.
  6. Technical support is available at technicalsupport@windstream-inc.com, or by calling 855-872-6645 ext. 2.

Limited Warranty

WindStream Technologies, Inc. warrants to the original Purchaser only that the Products will be free from defects in workmanship and material for 5 years after the shipment date (the “Warranty Period”). WindStream’s warranty will not extend to any Products that have been subjected to: (a) improper installation or storage; (b) ordinary wear, tear or deterioration of the Products; (c) operation or maintenance not in accordance with applicable operating instructions; (d) accident, damage, abuse or misuse; (e) modification by any party other than WindStream or (f) abnormal or unusual operating conditions or applications, including any application in any way different from that for which such Product was designed. Any modification, tampering or manipulation of the Products, any alteration of any parts or any substitution of parts not provided by WindStream or not authorized by WindStream shall render void all of WindStream’s warranties with respect to the Products. WindStream MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING THE PRODUCTS AND WindStream SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND FREEDOM FROM INFRINGEMENT CLAIMS.
